API Keys

API keys are the primary authentication mechanism for your applications talking to the WaSphere Dashboard API. Every request your code makes must include an API key in the X-API-Key header.

X-API-Key: wsp_live_abc123...

API keys are distinct from the admin JWT used to log in to the dashboard. Keys are meant for programmatic access — server-to-server or automation scripts — not for browser sessions.

Key Format

WaSphere API keys use a prefixed format for easy identification:

wsp_live_<32 random characters>

The wsp_live_ prefix makes it easy to identify WaSphere keys in logs, configuration files, and secret scanners. If you're using a secret scanning tool (GitHub secret scanning, truffleHog, etc.), configure it to flag strings matching wsp_live_[a-zA-Z0-9]{32,}.

Creating an API Key

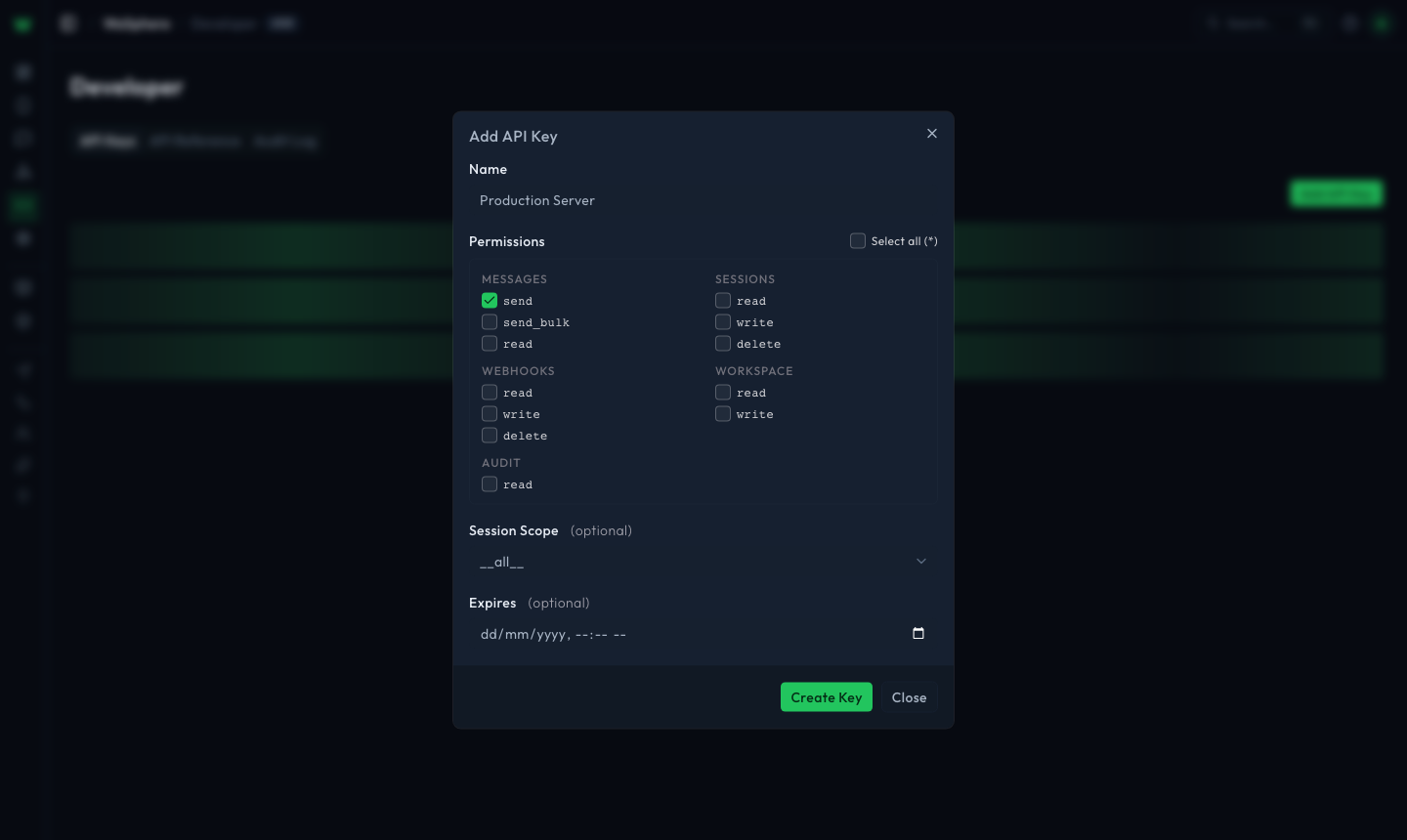

Via the dashboard:

1. Navigate to API Keys in the sidebar
2. Click New Key
3. Enter a descriptive name (e.g. whmcs-integration or mobile-app)
4. Select the permissions this key needs (see table below)
5. Optionally restrict to a specific session
6. Click Create

Copy the key immediately — it is only shown once. WaSphere stores a hashed version and cannot reveal the original value.

Via the API (requires a key with keys:write permission or admin JWT):

curl -X POST https://wa.yourdomain.com/api/keys \
  -H "X-API-Key: YOUR_ADMIN_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "whmcs-integration",
    "permissions": ["messages:send", "sessions:read"],
    "sessionId": "sess_abc123"
  }'

Response:

{
  "id": "key_abc123",
  "name": "whmcs-integration",
  "key": "wsp_live_xK9mN2pQ7rT4vW6yZ1aB3cD5eF8gH0jL",
  "permissions": ["messages:send", "sessions:read"],
  "sessionId": "sess_abc123",
  "createdAt": "2026-05-25T10:00:00.000Z"
}

Permissions

WaSphere uses 12 granular permission scopes. Assign only the permissions each key actually needs — following the principle of least privilege.

Typical Permission Sets by Integration Type

Session Scoping

By default, an API key can interact with all sessions that its permissions allow. For stronger isolation, restrict a key to a single session.

A session-scoped key:

• Can only read/write data for the specified session
• Returns 403 Forbidden for any request involving a different session
• Is ideal for multi-tenant setups where each customer has their own WhatsApp number

To scope a key at creation time:

{
  "name": "customer-a-notifications",
  "permissions": ["messages:send", "sessions:read"],
  "sessionId": "sess_abc123"
}

To update scoping on an existing key (via the dashboard only — changing sessionId via API is not supported to prevent privilege escalation).

Using a Key in Requests

Include the key in the X-API-Key header on every request:

curl https://wa.yourdomain.com/api/sessions \
  -H "X-API-Key: wsp_live_xK9mN2pQ7rT4vW6yZ1aB3cD5eF8gH0jL"

const BASE_URL = 'https://wa.yourdomain.com/api';
const API_KEY = process.env.WASPHERE_API_KEY;

async function waRequest(path, options = {}) {
  const response = await fetch(`${BASE_URL}${path}`, {
    ...options,
    headers: {
      'X-API-Key': API_KEY,
      'Content-Type': 'application/json',
      ...options.headers,
    },
  });

  if (!response.ok) {
    const error = await response.json();
    throw new Error(`WaSphere API error: ${error.message} (${response.status})`);
  }

  return response.json();
}

// Usage
const sessions = await waRequest('/sessions');

import os
import requests

WASPHERE_BASE_URL = 'https://wa.yourdomain.com/api'
WASPHERE_API_KEY = os.environ['WASPHERE_API_KEY']

session = requests.Session()
session.headers.update({
    'X-API-Key': WASPHERE_API_KEY,
    'Content-Type': 'application/json',
})

def wa_request(method, path, **kwargs):
    response = session.request(method, f'{WASPHERE_BASE_URL}{path}', **kwargs)
    response.raise_for_status()
    return response.json()

# Usage
sessions = wa_request('GET', '/sessions')

<?php

class WaSphereClient
{
    private string $baseUrl;
    private string $apiKey;

    public function __construct(string $baseUrl, string $apiKey)
    {
        $this->baseUrl = rtrim($baseUrl, '/');
        $this->apiKey = $apiKey;
    }

    public function request(string $method, string $path, array $body = []): array
    {
        $ch = curl_init();
        curl_setopt_array($ch, [
            CURLOPT_URL => $this->baseUrl . $path,
            CURLOPT_RETURNTRANSFER => true,
            CURLOPT_CUSTOMREQUEST => $method,
            CURLOPT_HTTPHEADER => [
                'X-API-Key: ' . $this->apiKey,
                'Content-Type: application/json',
            ],
        ]);

        if (!empty($body)) {
            curl_setopt($ch, CURLOPT_POSTFIELDS, json_encode($body));
        }

        $response = curl_exec($ch);
        $statusCode = curl_getinfo($ch, CURLINFO_HTTP_CODE);
        curl_close($ch);

        if ($statusCode >= 400) {
            $error = json_decode($response, true);
            throw new RuntimeException("WaSphere API error: " . ($error['message'] ?? 'Unknown'));
        }

        return json_decode($response, true);
    }
}

$client = new WaSphereClient('https://wa.yourdomain.com/api', getenv('WASPHERE_API_KEY'));
$sessions = $client->request('GET', '/sessions');

Rate Limiting

API requests are rate-limited per key. The defaults are:

When you exceed the limit, the API returns 429 Too Many Requests:

{
  "statusCode": 429,
  "message": "Rate limit exceeded",
  "retryAfter": 23
}

The retryAfter field tells you how many seconds to wait before retrying.

Rate limit headers are included on every response:

X-RateLimit-Limit: 100
X-RateLimit-Remaining: 47
X-RateLimit-Reset: 1748170460

Rotating a Key

Key rotation invalidates the old key and issues a new one atomically — there is no gap where neither key works.

Via the dashboard:

1. Go to API Keys
2. Find the key to rotate
3. Click Rotate
4. Copy the new key value immediately

Via API:

curl -X POST https://wa.yourdomain.com/api/keys/KEY_ID/rotate \
  -H "X-API-Key: YOUR_ADMIN_KEY"

Response:

{
  "id": "key_abc123",
  "name": "whmcs-integration",
  "key": "wsp_live_newKeyValueHere...",
  "rotatedAt": "2026-05-25T10:00:00.000Z"
}

Update WASPHERE_API_KEY in your application's environment and redeploy. The old key begins returning 401 Unauthorized immediately after rotation.

Deleting a Key

curl -X DELETE https://wa.yourdomain.com/api/keys/KEY_ID \
  -H "X-API-Key: YOUR_ADMIN_KEY"

Deletion is immediate and irreversible. Any application still using the deleted key will receive 401 Unauthorized.

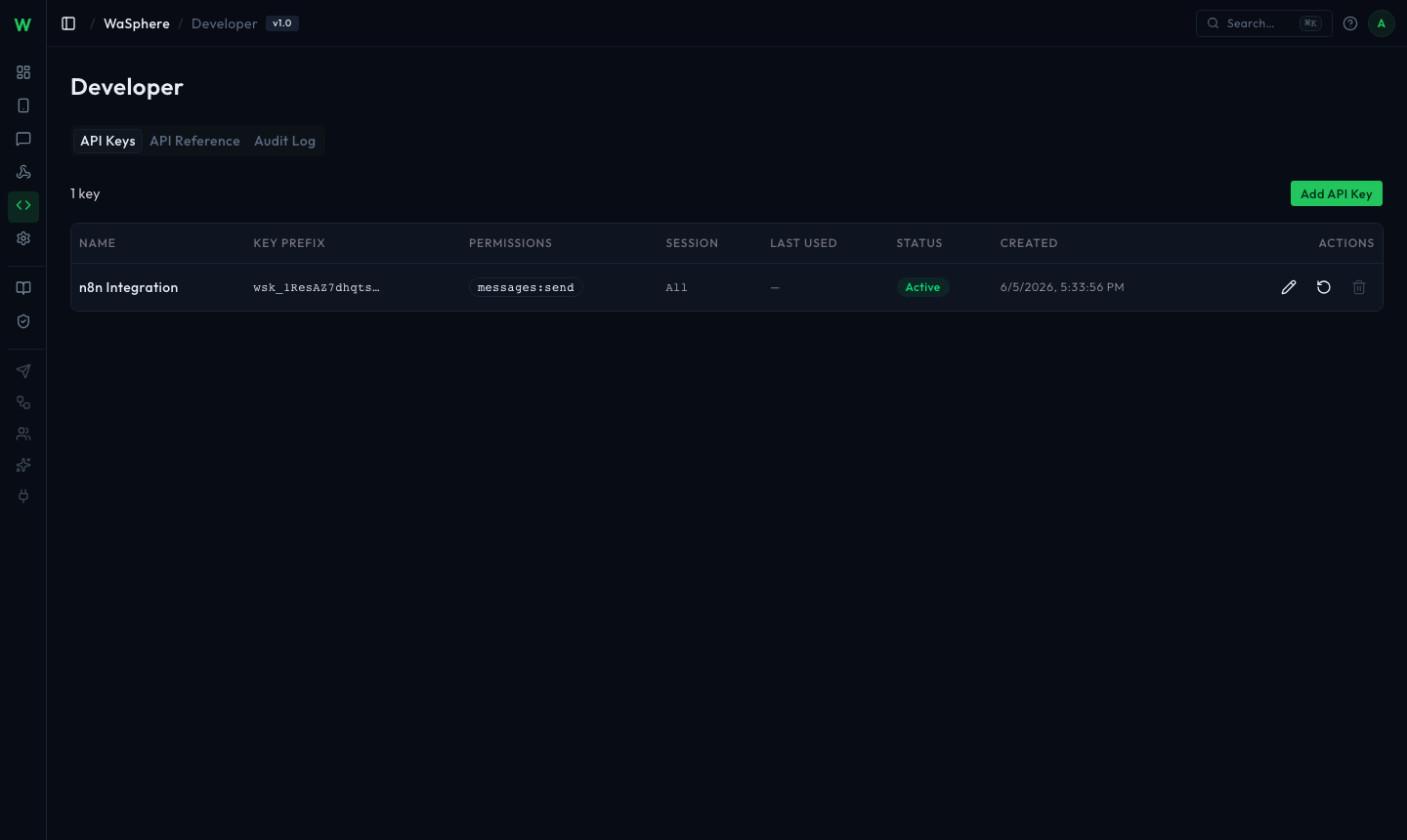

Listing Keys

curl https://wa.yourdomain.com/api/keys \
  -H "X-API-Key: YOUR_ADMIN_KEY"

The response includes all key metadata except the key values:

{
  "keys": [
    {
      "id": "key_abc123",
      "name": "whmcs-integration",
      "permissions": ["messages:send", "sessions:read"],
      "sessionId": "sess_abc123",
      "lastUsedAt": "2026-05-25T09:55:00.000Z",
      "createdAt": "2026-05-20T08:00:00.000Z"
    }
  ],
  "total": 1
}

Error Responses
